PROCESSOR

CPU

Onboard Intel Core Broadwell-U i3/i5/i7 Processor

RAM

Onboard 2GB/4GB DDR3 1066/1333/1600MHz,1 RAM slot to expand 12GB DDR3 RAM max.

STORAGE

Onboard SSD16/32/64/128G  (optional)

SATA and MSATA,HDD or SSD (optional)

NETWORK

2*RTL8111E RJ45 1000M LAN

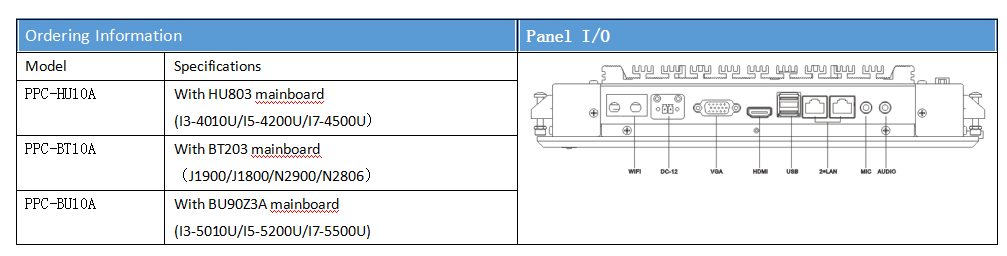

I/O INTERFACE

5*RS-232, 1*RS422/485,2*DB9 RS-232 3* 3pin RS-232

2*USB2.0,2*USB3.0，

1*14BIT GPIO Connector，

1*LINE OUT 1*MIC，

2*Wifi Antenna port

1*POWER ON/OFF switch

1*VGA Maximum resolution 2048x1536 1*HDMI Maximum 3200*2000@60HZ

EXPANSION BUS

1* full size Mini PCIE slot

WATCHDOG

0-255 second, Sample code optional

Physical characteristics

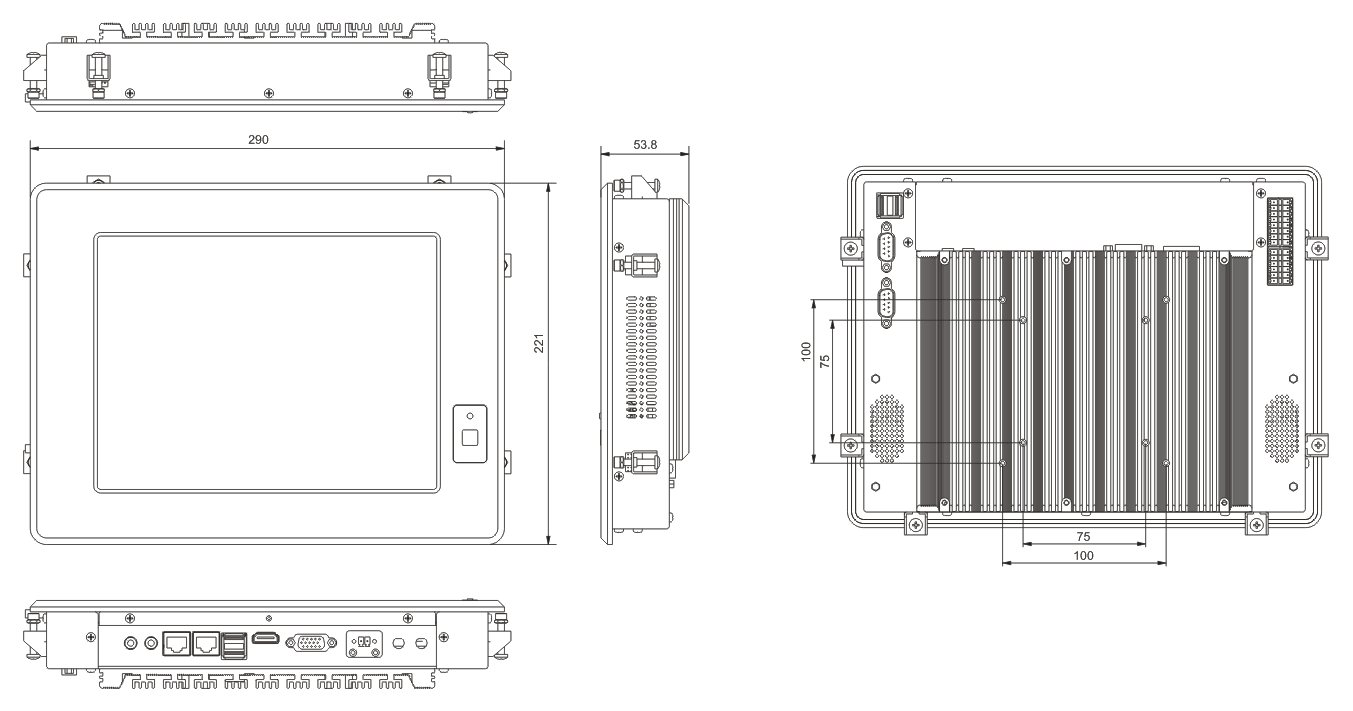

Size(mm)

290*221*53.8mm

Weight(kgs)

2.43kg

O/S SUPPORT

Operation System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

POWER SUPPLY

INPUT

Single input DC12V 5A   +/-5%

Power Consumption

35W

Battery Module

Module for management of lithium-ion batteries + battery indicator (optional)

LED DISPLAY

DISPLAY TYPE

10inch TFT LED

Maximun Resolutions

800*600

View

80 (LEFT), 80 (RIGHT), 70 (UP), 70 (DOWN)

Lumens (cd/m2)

350cd/m2

Contrast

400:1

Backlight Life

30,000 hrs (Min.)

TOUCH PANEL

TYPE

4 Wires Resistive touch panel

Light Transmittance

≥85%

Controller Interface

USB port

Durability(Touch Times)

>3500 million times

ENVIRONMENT

Working Temperature

-20℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

IP65
