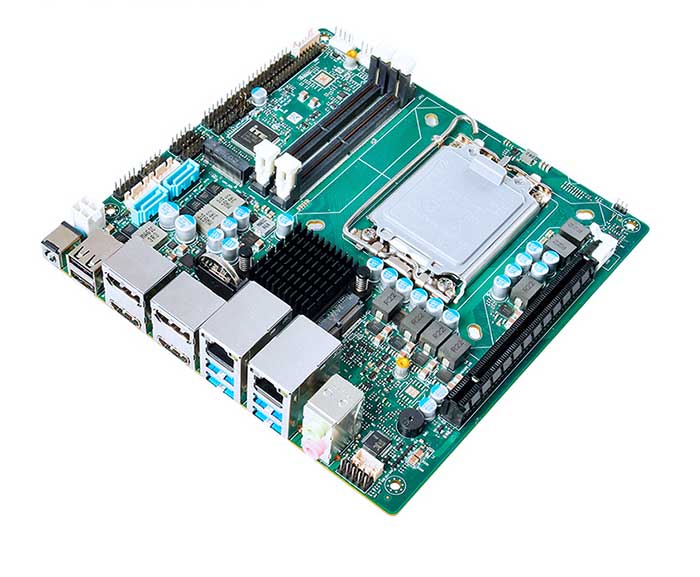

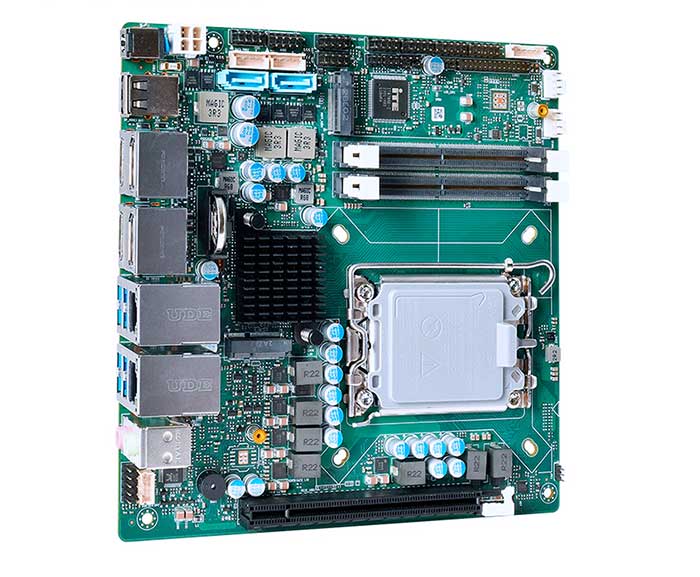

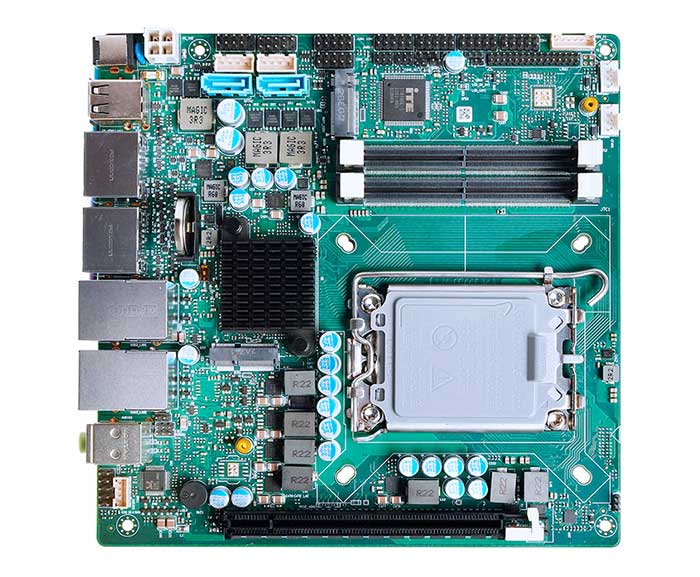

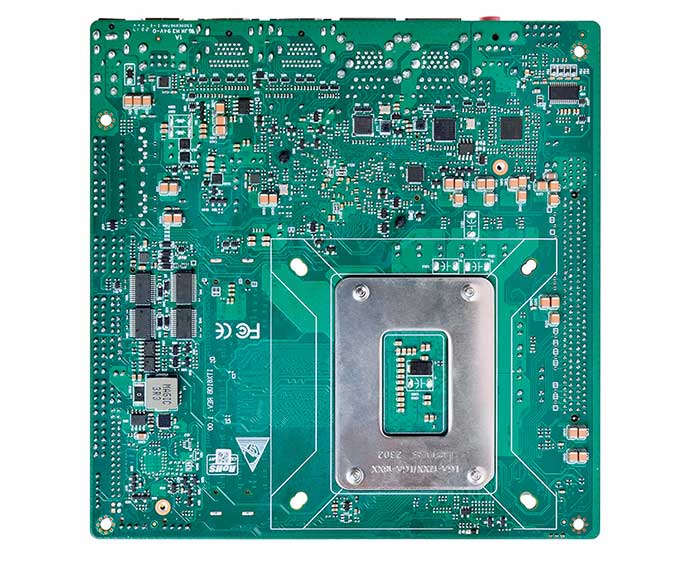

Description :
◆ Intel 12th gen Alder Lake-S series/13th gen Raptor Lake-s series, LGA1700, TDP 65W; H610/Q670;
◆ 2*DDR5 SO-DIMMs, up to 64GB;
◆ 2*Intel Network i219-LM + i226-V, 2*HDMI, 2*DP, DP/LVDS
◆ M-Key 2280，E-Key，PCIe_X16
◆ Power supply: DC 12-24V
◆ Size: 170x170 mm
|
Processor system |
Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-S series, LGA1700, TDP 65W |
|
|
EFI BIOS |
|
Memory |
2*DDR5 SO-DIMM 4800MHz, up to 64GB |
|
Storage |
1*M.2 M-Key 2280 (NVMe PCIe4.0_x4 default / optional SATA3.0 protocol) storage interface |
|
|
2*SATA3.0 interface |
|
Display |
2*HDMI2.1 interface, support 4096x2160@60Hz |
|
|
2*DP1.4, support 7680x4320@60Hz |
|
|
eDP/LVDS |
|
Board edge I/O interface |
DC JACK, 2*USB2.0 |
|
|
2*HDMI/DP |
|
|
2*(LAN + 2*USB3.2), 2-hole audio input and output |
|
Extended Interface/Function |
TPM2.0 optional, N/A by default |
|
|
1*PCIe_X16 (PCIe4.0_16x protocol) |
|
|
1*M.2 E-Key (PCIe3.0/USB2.0 protocol, support WIFI/BT module) |
|
|
4*COM pin header, 2x5Pin, pitch 2.54m; COM1/2 can choose RS232/485, COM3/4 can be RS232 |
|
|
2 groups of 4 USB2.0 pin headers, with a pitch of 2.54mm (one USB2.0 and BT share LAY) |
|
|
8*GPIO header, 2x5Pin, pitch 2.54mm |
|
|
1*4Pin PWM CPU fan, 1*4Pin system fan |
|
Power Supply |
DC 12-24V, above 120W |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90% |
|
Operating System |
Windows10, Windows11, Linux |
|
Size |
170x170mm |
|
weight |
about 400g |
