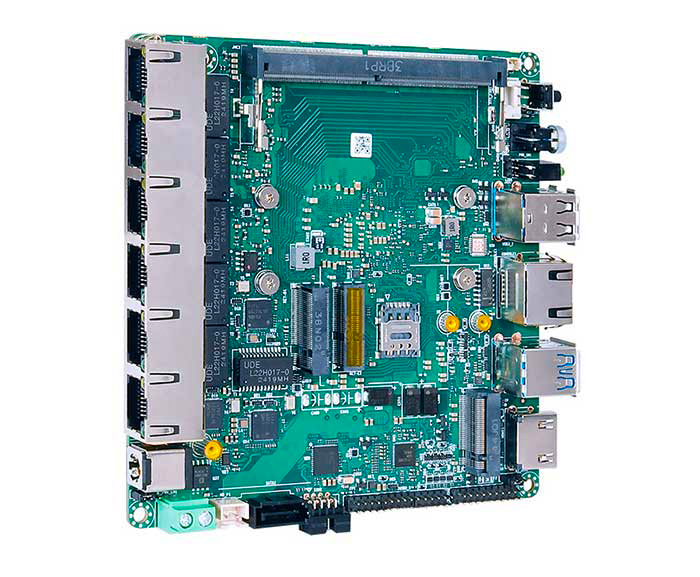

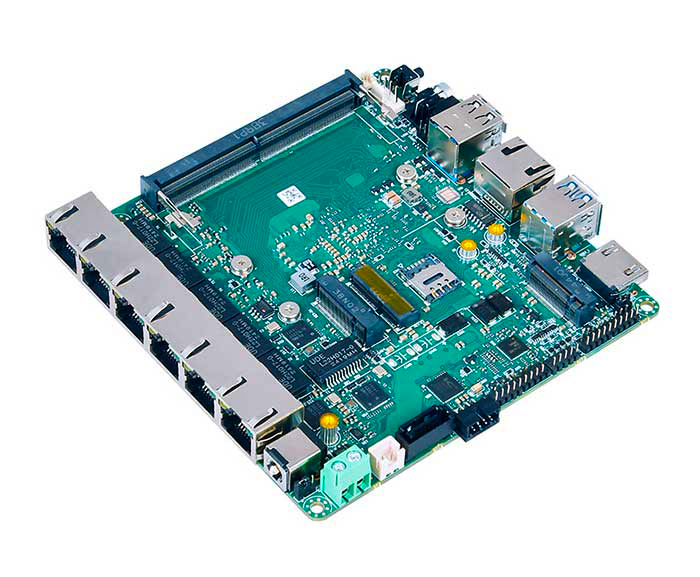

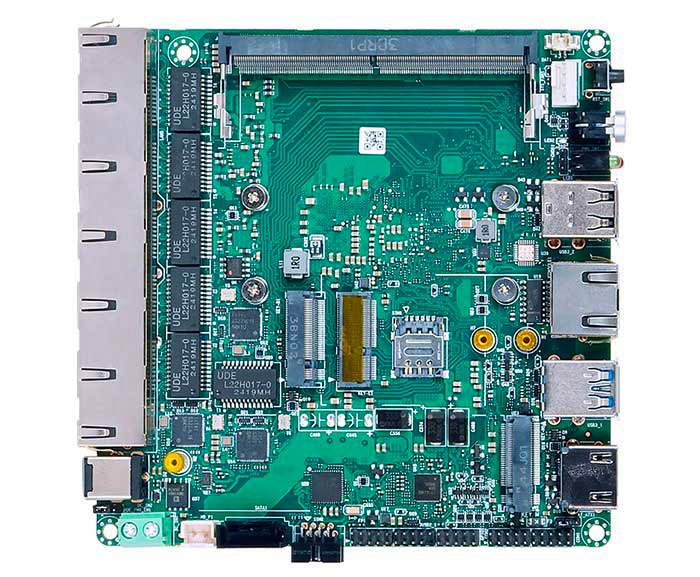

Description :
?Onboard Intel Alder Lake-N series processor;
?1 x DDR5 SO-DIMM, total maximum 16GB;
?6 x Intel i226-V (4 x Intel i226-V optional);
?1 x M.2 2280 SSD, E-Key, B-Key;
?1 x HDMI2.0, TPM2.0;
?DC 12-19V; Size: 120 x 120mm.
|
Processor system |
Onboard Intel Alder Lake-N series processor, TDP 15W |
|
|
EFI BIOS |
|
Memory |
1 x DDR5 SO-DIMM, total maximum 16GB |
|
Storage |
1 x M.2 M-Key 2280 (SATA3.0 protocol) |
|
|
1 x SATA3.0, 2Pin 5V power supply |
|
Display |
1 x HDMI2.0, support 4K@60Hz |
|

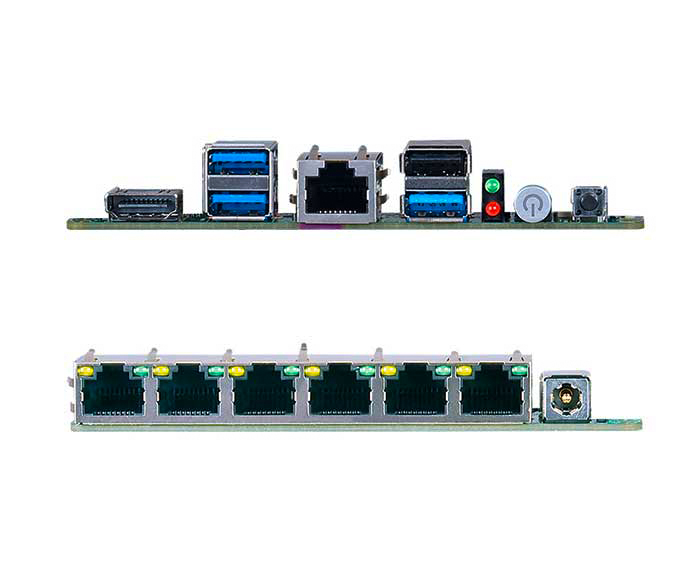

Board edge I/O interface |
Power button, reset button, 3 x USB3.0, 1 x USB2.0 |
|
|
DC JACK, 1 x HDMI, 1 x Console |
|
|
6 x Intel i226-V (4 x Intel i226-V optional; POE optional for LAN1/2/3/4, POE has a pop-up switch) |
|
Expansion interface/function |
External TPM2.0 optional, not available by default. The default is CPU built-in TPM2.0 |
|
|
1 x M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module; no PCIe protocol when using 4LAN) |
|
|
1 x M.2 B -Key (USB3.0+USB2.0 protocol, 4G/5G module) |
|
|
2 x RS232 pin headers, pitch 2.0mm; 8-bit GPIO, 2x5Pin, pitch 2.0mm |
|
|
1 x USB2.0 pin header, 2x5Pin, pitch 2.0mm; F _Panel |
|
|
1 x 4Pin PWM CPU FAN, 1 x 4Pin PWM SYS FAN |
|
Power supply |
DC 12-19V, 60W or above |
|
Work environment |
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating system |
Windows 10, Windows 11, Linux |
|
Size |
120 x 120 mm |
|
Net weight |

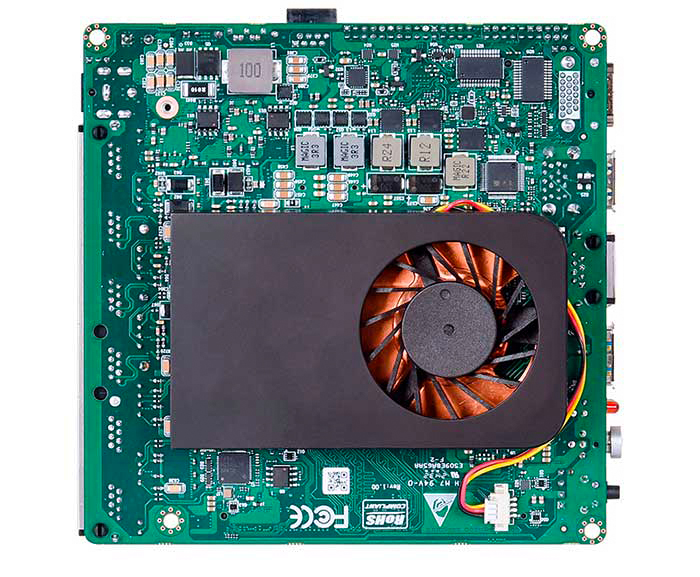

Without radiator, about 130g; with radiator, about 250g |
