Description :
?Onboard Intel Alder Lake-N serial processor
?1*DDR5 SO-DIMM，Max 16GB
?4*2.5G network ports,choose POE
?TPM2.0，1*M.2 2280 SSD，MiniPCIe(WIFI/BT/4G/mSATA)
?HDMI2.0+DP,1*Type-C（USB+DP）
?DC 12-19V；Size：120x120mm
|
Processor |
Onboard Intel Alder Lake-N serial processor,TDP 15W |
|
|
EFI BIOS |
|
Ram |
1*DDR5 SO-DIMM，Max 16GB |
|
Rom |
1*M.2 M-Key 2280(NVMe PCIe 4.0 x2/SATA3.0 protocol) |
|
|
1*SATA3.0 slot，2Pin 5V power |
|
Display port |
1*HDMI2.0,support 4096x2160@60Hz |
|
|
1*DP,support 7680x4320@60Hz |
|
|
Type-C,support DP 7680x4320@60Hz and USB3.2 Gen2 |
|

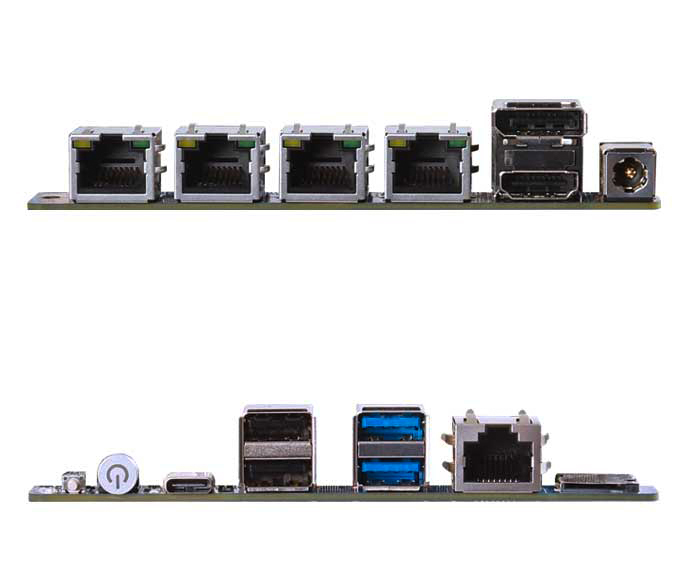

I/O interface |
Power button,reset button,2*USB3.0,2*USB2.0,TF card slot |
|
|
DC JACK,HDMI+DP,Type-C |
|
|
4*2.5G LAN（3*Intel 226-V,1*RTL8156B，choose POE or not）,RJ45 console |
|
Extended Interface/Function |
External TPM2.0 is optional, but not by default. The default is CPU built-in TPM2.0 |
|
|
1*MiniPCIe（PCIe+USB2.0+SATA3.0 protocol，WIFI/BT/mSATA module）,Micro SIM slot |
|
|
5*RS232 header，pitch 2.0mm；4*GPIO |
|
|
1*4Pin PWM CPU FAN |
|
Power |
DC 12-19V，over 36W |
|
working environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90% |
|
operating system support |
Windows10，Windows11，Linux |
|
Size |
120x120 mm |
|
net weight |
About 120g without radiator, about 220g with radiator |
