Description :
?Onboard Intel Alder Lake-N serial processor
?1*DDR5 SO-DIMM，Max 16GB
?4*2.5G network ports,choose POE
?TPM2.0，1*M.2 2280 SSD，MiniPCIe(WIFI/BT/4G/mSATA)
?HDMI2.0+DP，1*Type-C（USB+DP）
DC 12V，36W；Size：134x126x41mm
|
Processor |
Onboard Intel Alder Lake-N serial processor,TDP 15W |
|
|
EFI BIOS |
|
Ram |
1*DDR5 SO-DIMM，Max 16GB |
|
Storage |
1*M.2 M-Key 2280(NVMe PCIe 4.0 x2/SATA3.0 protocol) |
|
|
1*SATA3.0 slot，2Pin 5V power |
|
Display port |
1*HDMI2.0,support 4096x2160@60Hz |
|
|
1*DP,support 7680x4320@60Hz |
|
|
Type-C,support DP 7680x4320@60Hz and USB3.2 Gen2 |
|
I/O interface |

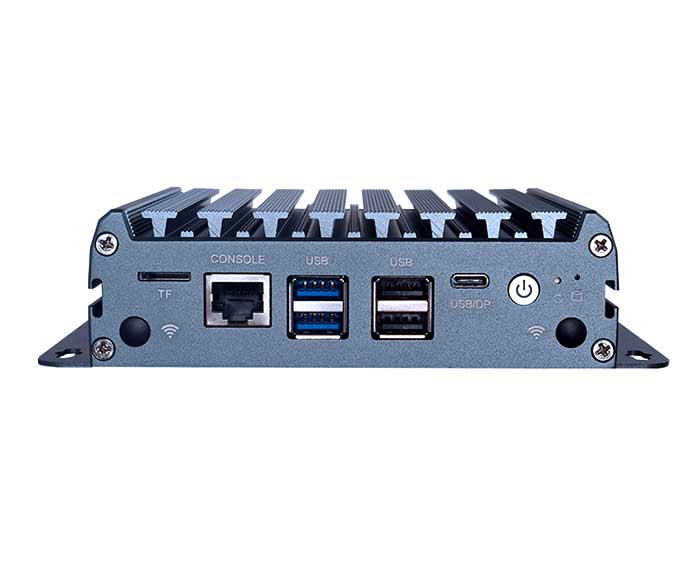

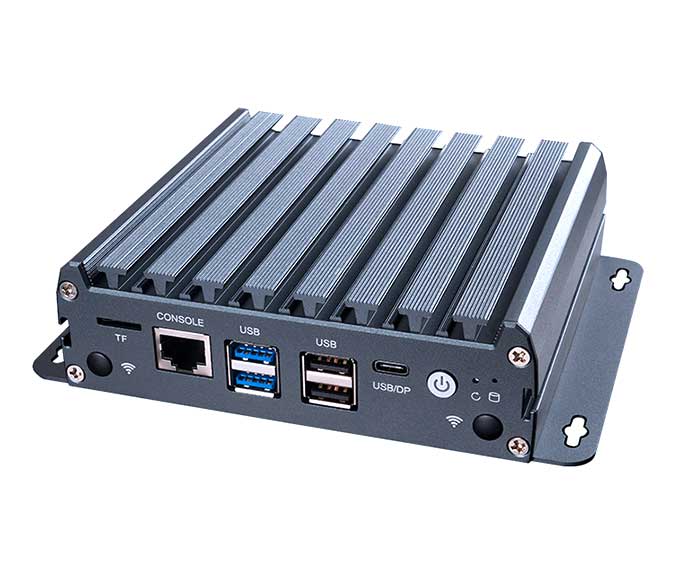

Power on button, reset button, 2*USB3.0, 2*USB2.0, TF card |
|
|

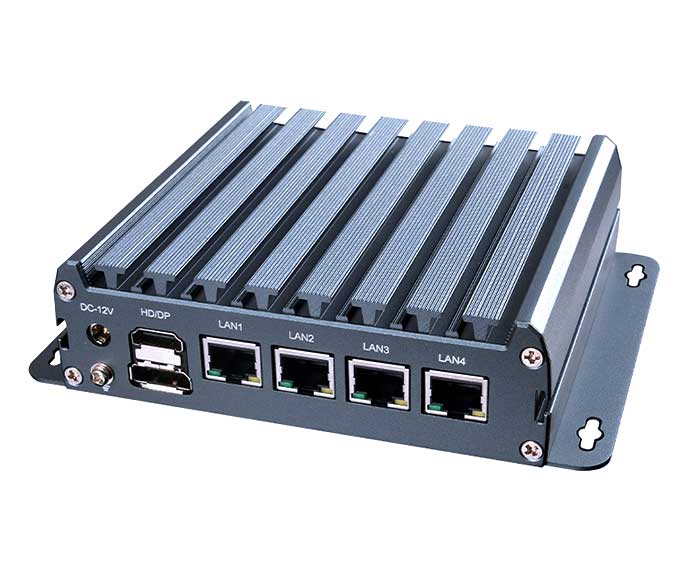

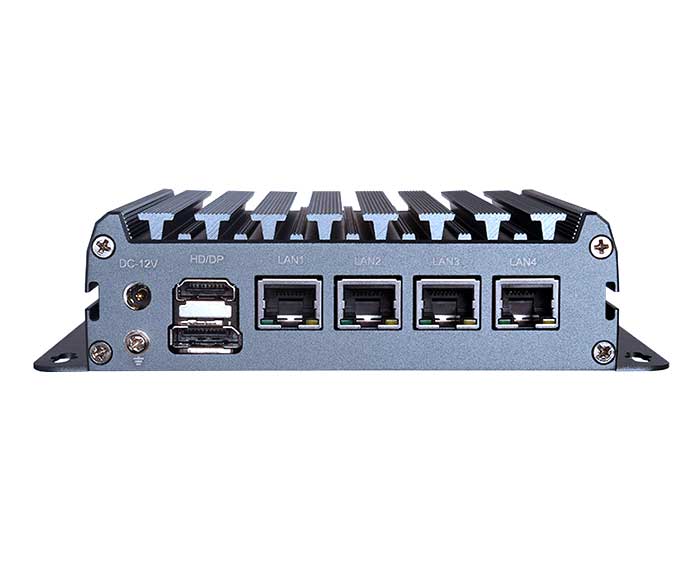

DC JACK, HDMI+DP, Type-C |
|
|
4*2.5G LAN (3*Intel 226-V, 1*RTL8156B, optional POE), RJ45 console |
|
Extended Interface/Function |
External TPM2.0 is optional, not available by default. Default is CPU built-in TPM2.0. |
|
|
1*MiniPCIe (PCIe+USB2.0+SATA3.0 protocol, WIFI/BT/mSATA/4G module),Micro SIM card |
|
|
5*RS232/RS485 pin (hardware material selection), pitch 2.0mm; 8*GPIO |
|
|
1*4Pin PWM CPU FAN; 1*4Pin PWM SYS FAN |
|
Power supply |
DC 12V，36W Above |
|
working environment |
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90 |
|
|
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90% |
|
operating system support |
Windows10，Windows11，Linux |
|
Size |
134x126x41 mm |
|
Net weight |
About 600g |
