Description :

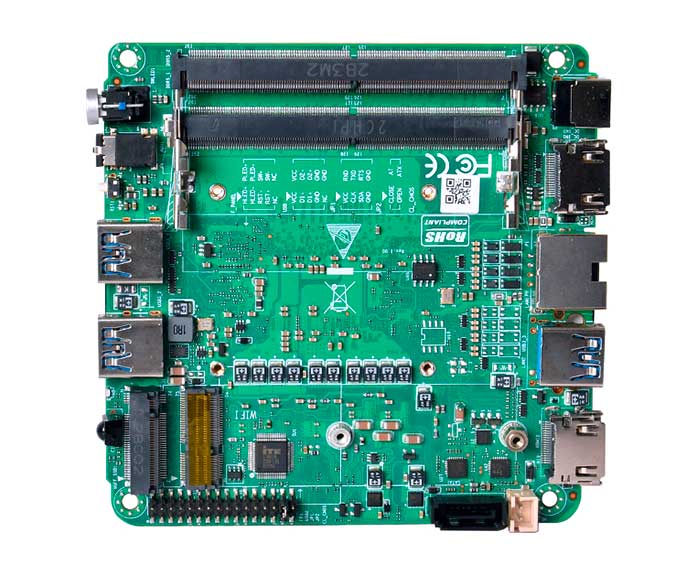

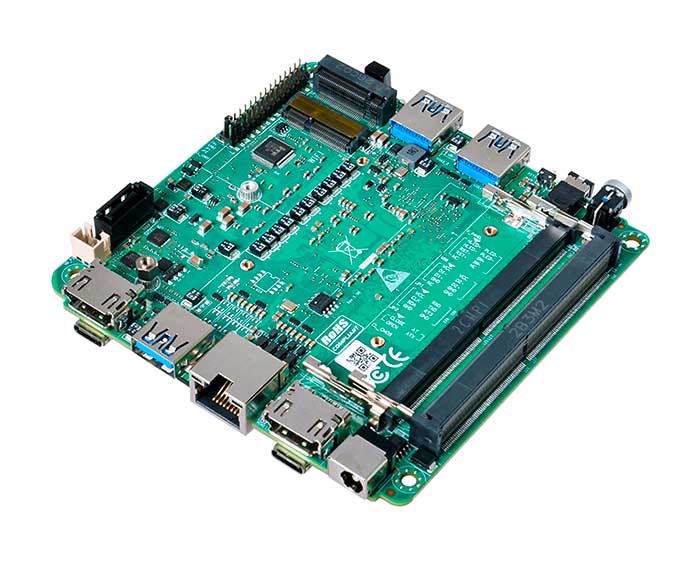

?Onboard Intel Alder Lake-U/-P series processor
?2*DDR5 SO-DIMM, up to 64GB
?Intel 2.5G network, single and dual network optional
?TPM2.0, M.2 SSD, M.2 WIFI
?2*HDMI2.0, 2*Type-C (USB+DP)
?DC 12-19V;
?size: 100x100mm
|
Processor system |
Onboard Intel Alder Lake-U/-P series processor |
|
|
EFI BIOS |
|
Memory |
2* DDR 5 SO-DIMM , total maximum 64 GB |
|
storage |
1 *M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol) |
|
|
1 * SATA 3.0 interface , 2Pin 5V power supply |
|
show |
2* HD-MI 2.0 interface , support 4096 x 2160@60H z |
|
|
2*Type-C interface , support DP 7680 x 4320 @60H z and USB3.2 Gen2 |
|

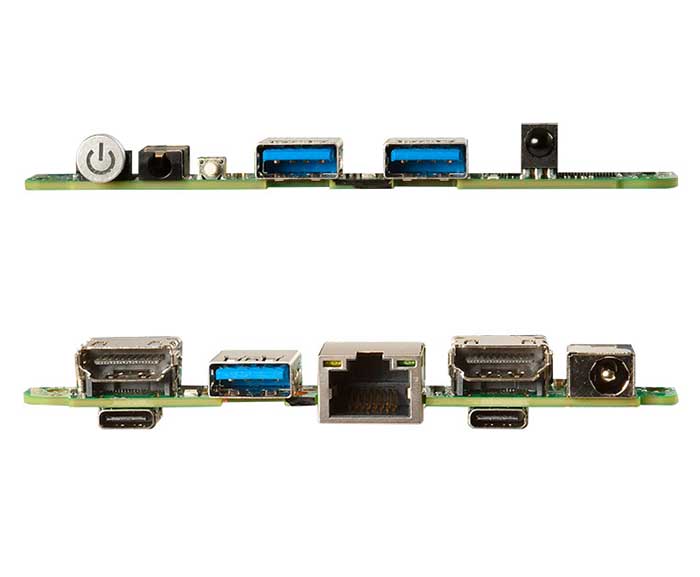

Board edge I/O interface |
Power button, 2-in-1 audio jack, reset button, 2*USB3.2 Gen2 |
|
|
DC JACK, 2*HD-MI, 2*Type-C, 1*LAN |
|
|
Single and dual network optional: single network, 1*USB3.2 on the rear I/O; dual network, 1*USB3.2 on the rear I/O |
|
Expansion interface/function |
External TPM2.0 is optional, not available by default. The default is CPU built-in TPM2.0 |
|
|
1 * M.2 E-Key ( PCIe+USB2.0 protocol, WIFI/BT module) |
|
|
1*RS232 pin header, spacing 2.0mm |
|
|
1*USB2.0 pin header, 2x5Pin, spacing 2.0mm |
|
|
1*4Pin PWM CPU FAN |
|
power supply |
DC 12-19 V, 120W or more |
|
Work Environment |
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating System |
Windows 10, Windows 11, Linux |
|
size |
1 00 x1 00 mm |
|
net weight |

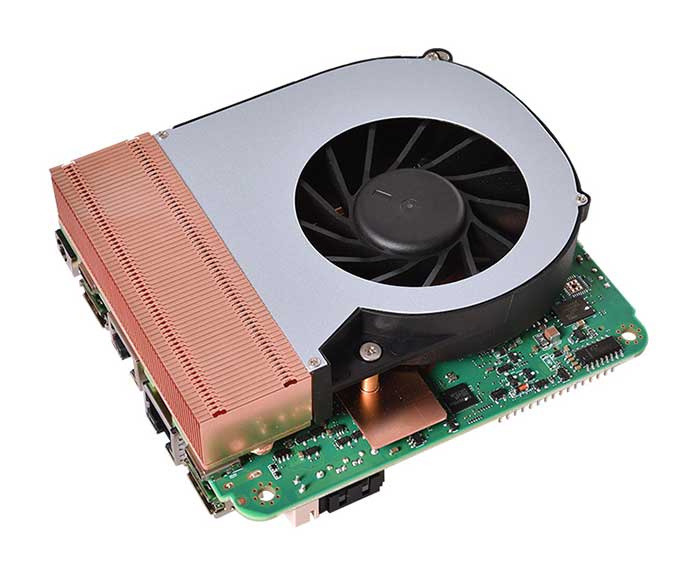

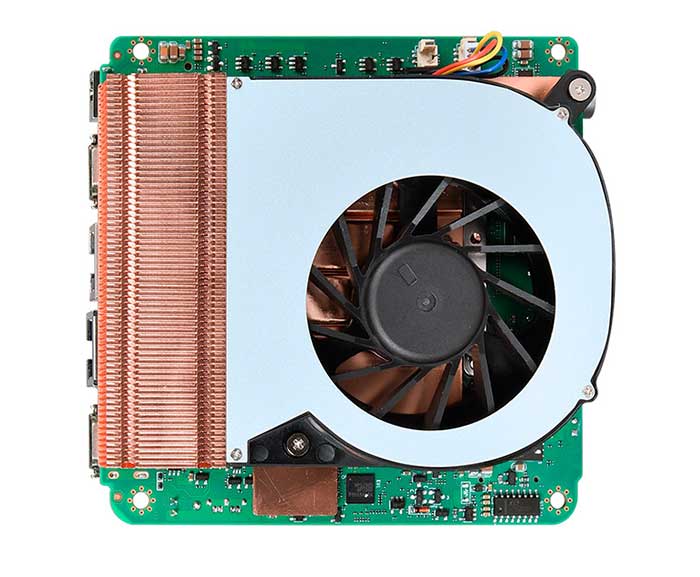

Without radiator, about 120 g ; with radiator, about 220 g |
