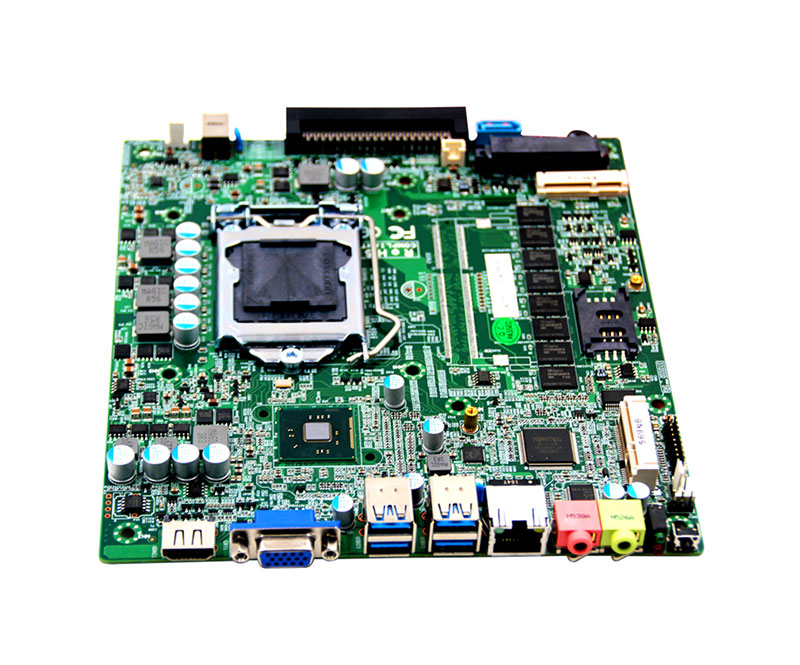

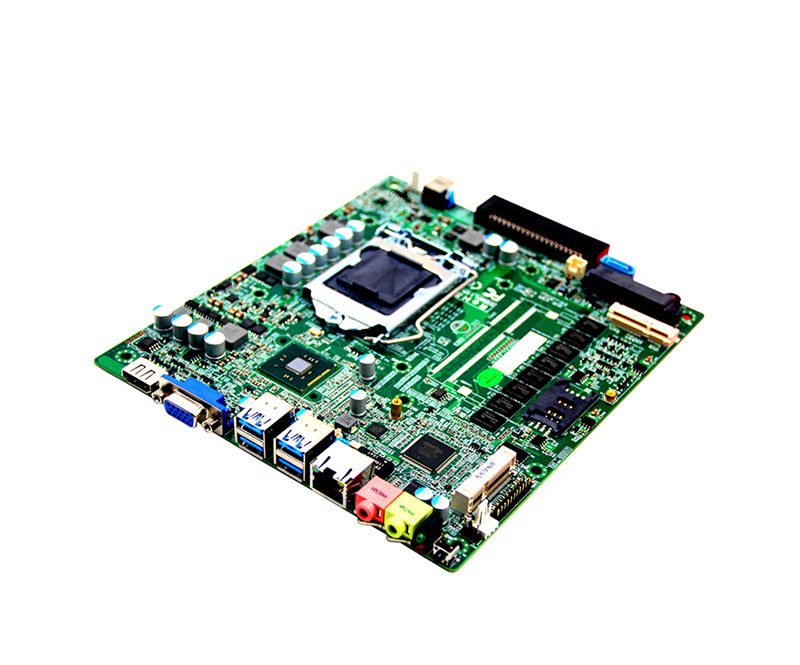

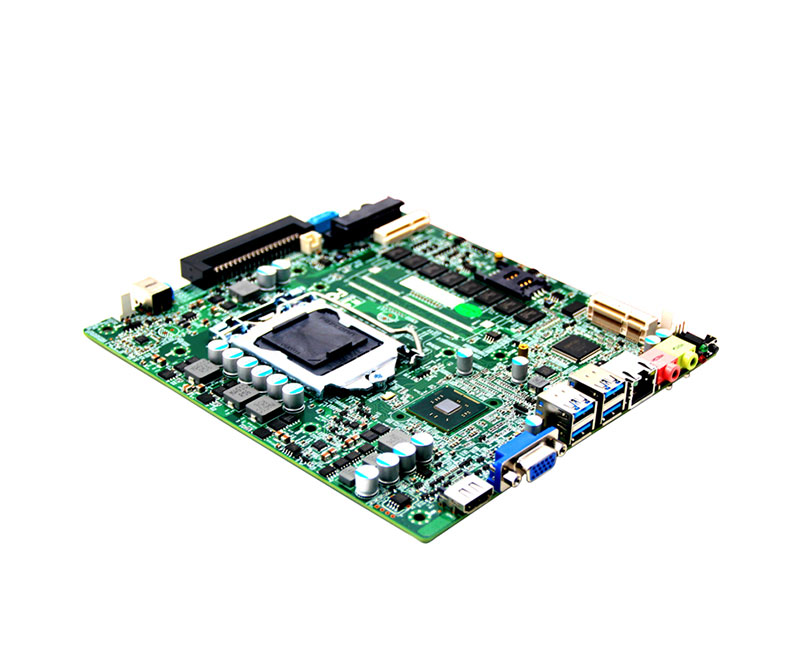

Processor system

CPU

Support LGA1150 interface?Intel 4^th?i3-i5-i7 CPU

CPU package

PGA

chipset

Intel? H81 or H87 Express Chipset

BIOS

EFI BIOS

RAM

Technology Architecture

Single channel DDR3L 1066/1333/1600MHz

capacity

Onboard 2GB/4GB DDR3L memory

Slot

Add 1 DDR3 SODIMM 204 Socket memory slot, up to 12G

?

video

Graphics controller

Intel HD Graphics 4000 graphics card model related to CPU

HDMI

HDMI supports maximum resolution 4096×2304@24HZ

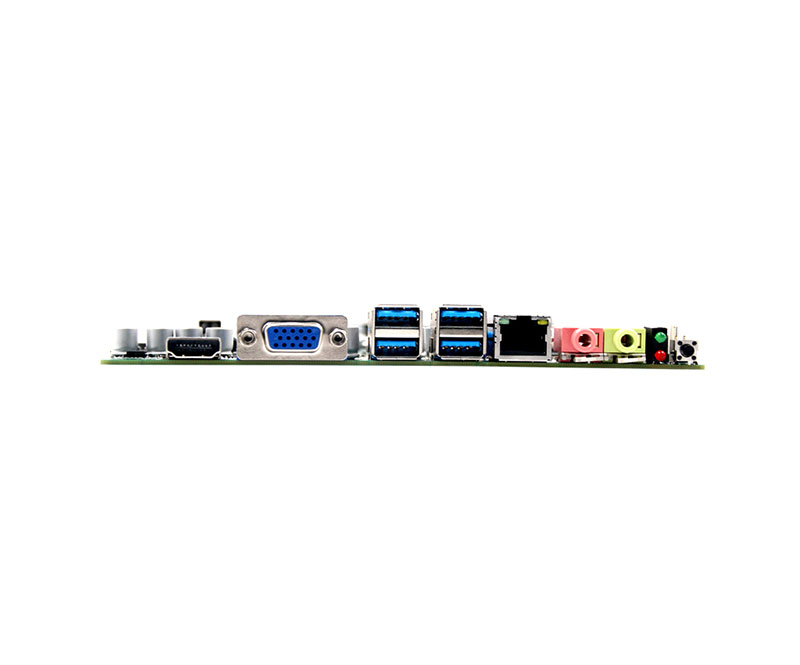

I/O backplane

port

1*HDMI,,1*LAN.4*USB3.0, 1*MIC-OUT/LINE-OUT, 1*DC, 1* power button

The internet

Controller

1 RTL8111E-V Gigabit LAN, RJ45 interface

Audio

Controller

Raychem HD ALC662 audio decoding (audio output + microphone)

Super ?I/O

Controller

NCT6106D

Hardware monitoring

Watchdog timer

0-255 seconds, providing a watchdog routine

Cooler

Standard H81 fan, optional.

?

Input/output interface

USB

4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1A

Serial port

1?RS232

PS/2

no

Expansion bus

Mini-PCle

2 Mini-PCIe slots for PCIe and USB devices

storage

SATA

1 standard SATAIII interface, maximum transfer rate 6Gb/s

M-SATA

1 Mini-PCIe M-SATA Scoket with SANDISK protocol, maximum transfer rate 3gb/s

power supply

Power type

Single input DC power supply, DC12V-19V, +/-5%, support AT/ATX power on

Power consumption

60W

?working environment

Operating temperature

-20℃ ~ +60℃

storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

physical dimension

size

190?x 171?mm

weight

0.5KG

Certification

?

CE,ROHS,FCC

1*SATA line? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

1*SATA-P line?

product name

Specifications

Inline USB cable

Length 32CM, one for 2*USB port

Wire can be customized according to customer requirements

Internal Serial Cable

Length 32CM integrated and solid

Inline VGA cable

Length 36CM, 2.54 pitch pin header

Inline LPT Line

Long 30CM, 2.54 pitch pin header
